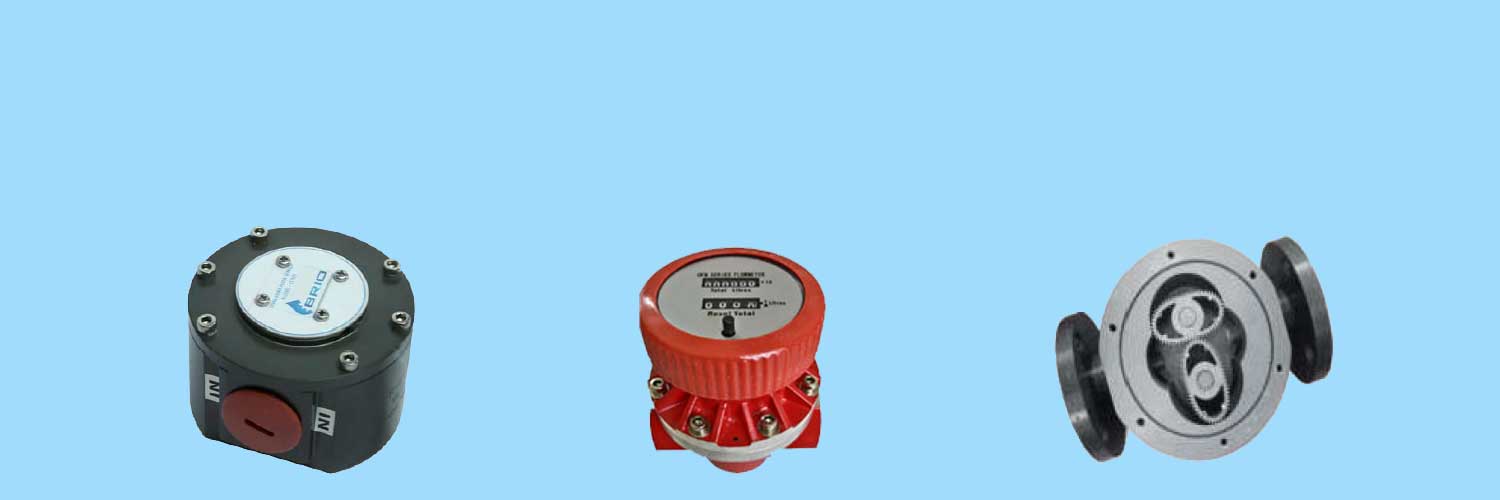

Fuel flow meter

Fuel flow meter

FLOW RANGE:

Pipe Size Model No Flow Rate (MinMax) Litter/pulse
1/4" CI‐003‐A‐A‐S 0.05~50L/H 0.333 ml/p
1/4" CI‐004‐A‐A‐S 0.7 ~60L/H 0.416 ml/p
3/8” CI‐006‐A‐A‐S 5~150 L/H 0.661 ml/p
3/8” CI‐008‐A‐A‐S 20~300L/H 2.5 ml/p
1/2" CI‐012‐A‐A‐S 50~800L/H 2.5 ml/p
3/4" CI‐020‐A‐A‐S 50~800L/H 15.4 ml/p
1” CI‐025‐A‐A‐S 200~4,000L/H 25.6 ml/p
1.5” CI‐040‐A‐A‐S 500~10,000L/H 86ml/p
2” CI‐050‐A‐A‐S 600~20,000L/H 190ml/p
3” CI‐080‐A‐A‐S 1000~50,000L/H 540ml/p
4” CI‐100‐A‐A‐S 2000~1,00,000L/H 1000ml/p
5” CI‐150‐A‐A‐S 5000~1,50,000L/H 3200ml/p
