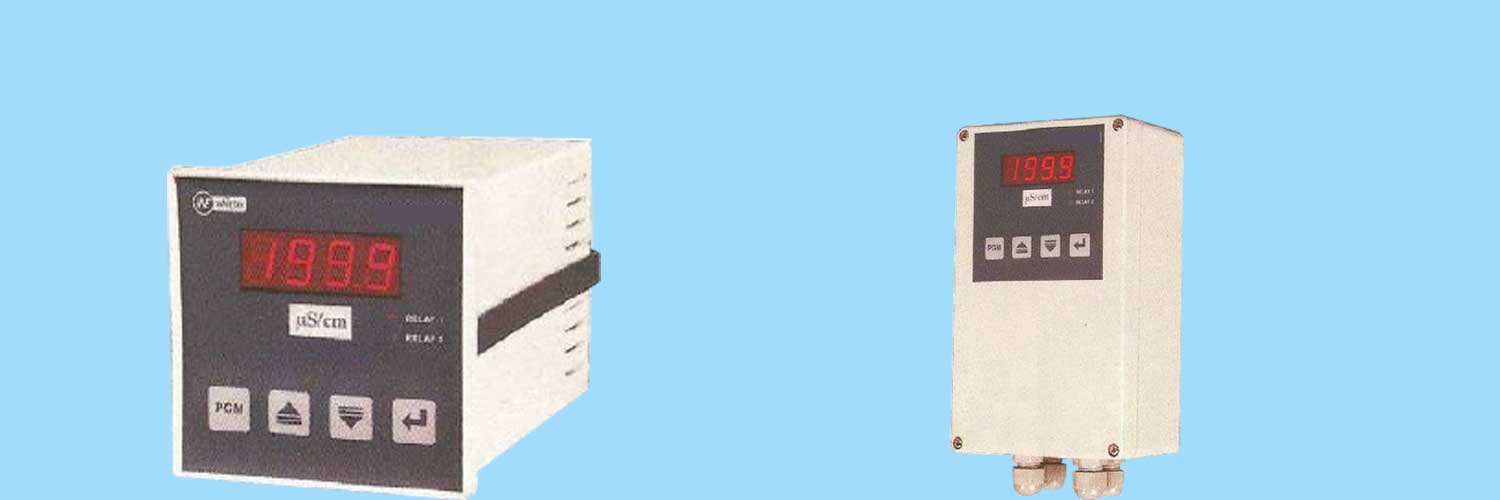

Conductivity TDS Meter

It is the reciprocal of electrical resistivity (ohms). Therefore conductivity is used to measure the concentration of dissolved solids which have been ionized in a polar solution such as water. The unit of measurement commonly used is one millionth of a Siemen per centimeter (micro-Siemens per centimeter or μS/cm).

Features

  •    Panel and Field mounting.
  •    Selectable Unit uS or PPM
  •    0 to 600 PPM or 0 to 1000 uS +/- 2% (0.0)
  •    0 to 100 PPM or 0 to 200 uS +/- 2% (0.00)
  •    0 to 10 PPM or 0 to 20 uS +/- 2% (0.000)
  •    IP.65. (Field Instrument)
  •    24V and 240V Models.
  •    Two relay output.
  •   four selectable relay function.
  •   4-20ma output. (SE-CON-104)
  •   Rs485 Communication. (SE-CON-105)
  •   Onside calibration.
  •   16x2 ultra bright LCD.
  •   Also available in LED Display
  •   24Bit High resolution ADC.
  •   Programmable Averaging for stable readings.
  •   Data cable use to sensor for low noise.
